Infrared Light Proximity Sensor Switch With Programmable Mode Transmitter

Brand Name : IFM

Model Number : OT Photoelectric Sensors

Certification : CE,UL

Place of Origin : Germany

MOQ : 1 PCS

Price : consult for best discount

Payment Terms : T/T , Western Union,Paypal,, MoneyGram,, L/C

Supply Ability : 10-500 Pcs/month

Delivery Time : 2-15 days

Packaging Details : IFM Original Package

Application : Through-beam sensor

Operating voltage : 10 to 50VDC

Protection class : II

Type of light : Infrared light

Range : Less than 10M

Materials : PBT

Contact Now

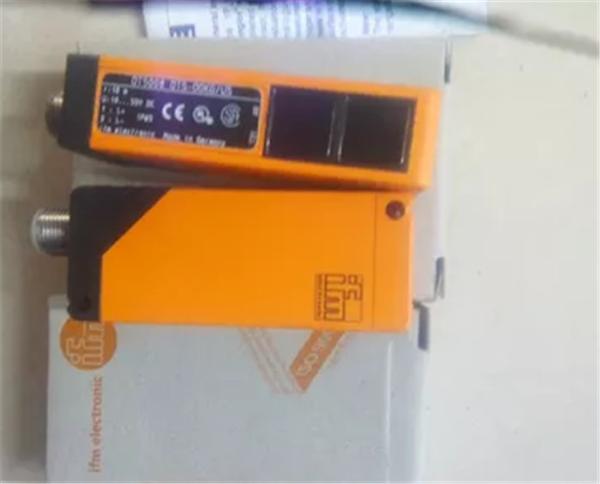

IFM OT Series Proximity Sensor Switch OT5008 Through-beam Sensor Transmitter

IFM OT5008 Through-beam Sensor Transmitter:

Compact housing for use where space is restricted
Programmable light-on/dark-on mode
Intuitive setting of the sensitivity via potentiometer
Very long range
LED display to check switching status and operation

Technical data of IFM OT5008 Proximity Sensor Switch :

Application

Function principle

Through-beam sensor

Electrical data

Operating voltage [V]

10...50 DC

Current consumption [mA]

20; ((24 V))

Protection class

Reverse polarity protection

yes

Type of light

infrared light

Wave length [nm]

880

Detection zone

Transmitter / receiver

transmitter

Range [m]

< 10

Range adjustable

Max. light spot diameter [mm]

524

Light spot dimensions refer to

at maximum range

Operating conditions

Ambient temperature [°C]

-25...60

Protection

IP 65

Tests / approvals

EMC

EN 60947-5-2
EN 55011	class B

MTTF [years]

1862

Mechanical data

Weight [g]

154.4

Housing

rectangular

Materials

PBT

Lens material

PMMA

Lens alignment

side lens

Displays / operating elements

Display

operation

1 x LED, green

Accessories

Accessories (supplied)

Angle bracket: 1 x, E20461

screwdrivers

Remarks

Pack quantity

1 pcs.

Electrical connection

Connection

Connector: 1 x M12

Infrared Light Proximity Sensor Switch With Programmable Mode Transmitter
